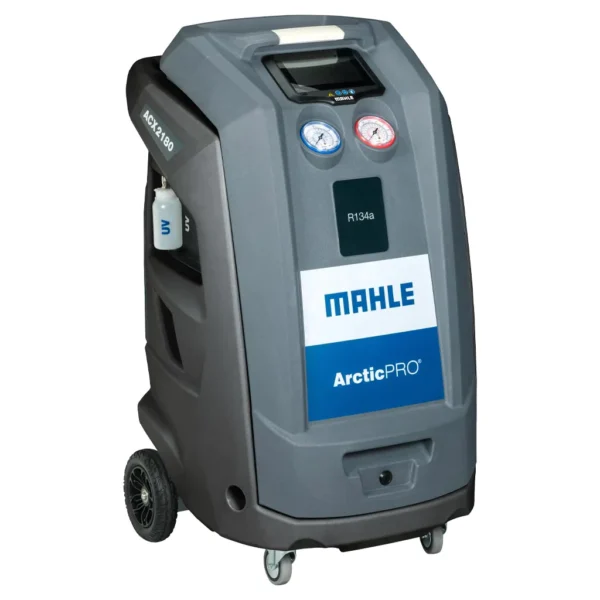

MAHLE ACX2180 – HIGH PERFORMANCE R134A AIR CONDITIONING SERVICE SYSTEM
$3,400.00 $3,100.00
-
FEATURES
- State-of-the-art ergonomic design, 7″ capacitive touch LCD display, and intuitive user interface sets a new industry standard.
- Contains three transducers, providing reduced process times over dual sensor units.
- LED light indicates status visible from anywhere in the workshop.
- iOS and Android capable phone app allowing remote service session mirroring and advanced functions.
- Best-in-class serviceability with a new ergonomic hinged service door simplifies unit service.
- Permanent wireless automatic software updates, ensuring you always have the latest features.
- Automatic weighing of recovered oil, allowing accurate replenishment of oil removed during service and allows two oil types for injection.
- Integrated UV dye injection provides high level of A/C system leak detection.
- Remote support for technicians allows MAHLE to connect to a unit over WiFi for troubleshooting and advanced support.
- Data management and reporting metrics offers the ability to log and monitor services allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting and more.
- Every unit is built to be easily repaired by the owner and we proudly offer nationwide service centers and lifetime phone support coverage.
- Retain valuable service records, network printing capability to print services provided for customer.
Categories: MACHINES, R-134A MACHINES
Description
MODEL NUMBER: ACX2180 | PART NUMBER: 460 80447 00
PRODUCT SPECIFICATIONS
Certifications SAE J2788, SAE J2099, UL 1963
Charge Performance +/-0.5 oz at 70 degrees to 75 degrees F (+/- 15g at 21° to 24°C)
Recovery Performance 95% at 70° to 75°F (21° to 24°C) within 30 minutes
Operation Fully Automatic
Charging Cylinder 30 lb. (13.6 kg) DOT
Compressor 3/8 HP-0.279kW
Dimensions (H x W x D) 47 in x 29 in x 29 in (119 cm x 74 cm x 74 cm)
Weight 215 lb. (98 kg)
Display Color, 7” Capacitive Touch Screen
Filter Drier Capacity 200 lb. (91 kg) spin-on type
Hoses 9 ft. (2.75 m)
Hybrid Function ACX2180H only
Languages English, French, Spanish
Operating Ranges 50° to 122°F (10° to 50°C)
Power Source 120 VAC – 60 HZ – 12 AMP
Printer Optional
Vacuum Pump 2 CFM dual stage
Warranty 1 Year Labor, 2 Years Parts
